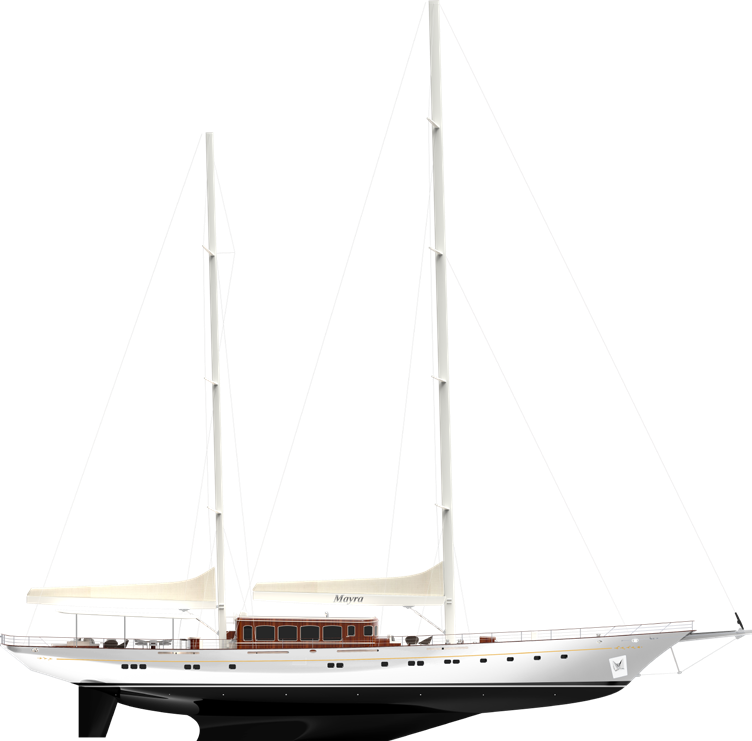

50m Mayra Sailing Yacht – Eritan

Eritan is a unique yacht that seamlessly blends the traditional sailing experience with modern technology – combining the comfort of a motor yacht with the thrill of sailing.

Designed by Studio Scanu and Karataş Yacht Design, this luxury performance ketch features classic lines enriched by a contemporary interior concept from Mayra Yachts, offering a clean and elegant classical atmosphere.

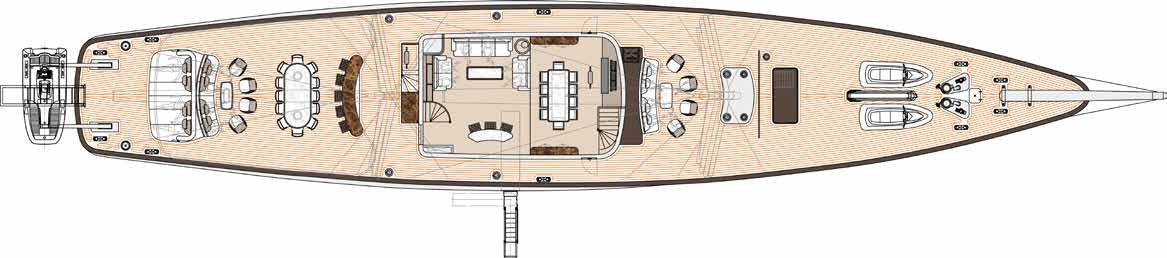

Eritan is built to navigate the world's oceans with the highest standards of comfort, safety, and style. The main deck is specially designed for unforgettable social gatherings with panoramic views.

With its spacious sunbathing area, a convertible dining table for 16 guests, large lounge seating, and a fully equipped wet bar station, the deck provides the perfect setting for both midday relaxation and evening entertainment. Additionally, a large sofa and coffee table are located on the foredeck.

At the aft, the yacht is equipped with a foldable gangway, boarding ladder, and a hydraulic passerelle.

Furthermore, the foredeck houses two 3-person jet skis and one tender boat, positioned for both leisure and support services.

MAIN TECHNICAL SPECIFICATIONS

Length Overall: 50.15 m

Maximum Beam: 8.72 m

Maximum Draft: 3.60 m

Displacement at Full Load: 250 tons

Hull Material: Wood Epoxy

Tonnage: 272 GT

Maximum Speed: 15 knots

Cruising Speed: 13 knots

Main Engines: 2 x MAN D 2676 LE428, 441 kW, IMO Tier III (with SCR filters)

Generators: 2 x 55 kW, Kohler

Fuel Capacity: 13,862 liters

Fresh Water Capacity: 5,730 liters

Guest Capacity: 13 guests in 6 cabins

Crew Capacity: 7 crew in 4 cabins

Sail Plan:

  • Main Sail: 260 m²
  • Mizzen Sail: 191 m²
  • Genoa: 371 m²
  • Storm Sail: 118 m²
  • Total Sail Area: 896 m²
  • Gennaker: 850 m²

Classification: TÜRK LOYDU 1A5 UN SAILING YACHT (+) M

Naval Architecture: Karataş Yacht Design

Exterior Design: Studio Scanu

Interior Design: To Be Determined (TBD)

Download Brochure

Specifications

Builder MAYRA YACHTS
Length (LOA) 164' 5" (50,15m)
Year 2025
Gross Tonn. 272
Draft(max) 3.60
Beam 8.72
Range TBA
Location Turkey
Classification TÜRK LOYDU 1A5

Accommodations

Staterooms 6
Twin Cabins 3
Sleeps 12
Heads 6
Crew Cabins 3+1
Crew Sleeps 6+1
Crew Mess 1

Dimensions & Capacity

LOA 164' 5" (50.15m)
LWL 118' 4" (36.10m)
Min Draft 7' (2.16m)
Max Draft 11' 8" (3.60m)
Fuel Tank 11,644 t (13,862 L)
Fresh Water (5,730 L)
Gross Tonn. 272
Displacement 250t @full load

Construction

Hull Material Wooden with Epoxy Cov.
Ext. Designer Studio Scanu & Karatas YD
Int. Designer Mayra Yacht
Max Speed 15 Knots
Cruising Speed 13 Knots
Range TBA

Rigging & Sails

The whole sailing systems of the yacht including rigging, mast, sails, captive winches, mooring winches, deck hardware, deck switches, bobstay, and all related items will be supplied by the Shipyard.

SAILS

  • MAIN SAIL (260m2)
  • MIZZEN SAIL (191m2)
  • GENOA (371m2)
  • STAY SAIL (118m2)
  • TOTAL SAIL AREA 896m2
  • GENNAKER 850m2
